● Immutable Storage QuTS hero OS supports WORM, ZFS deduplication, compression, and high-volume snapshots to ensure data integrity and long-term retention.
● DDR5 RAM Supports up to 192 GB DDR5 RAM, delivering stability and performance for memory-intensive applications and multi-VM workloads (ECC RAM is also supported).
● 3 x PCIe Gen 4 Expansion Slots Easily scale with 25GbE adapters, GPUs, or storage expansion cards—customize hardware to match evolving performance needs.
● High-Speed 10/2.5GbE Ports Equipped with dual 10GbE and dual 2.5GbE ports, ideal for fast multi-user file sharing, low-latency virtualization, and high-throughput media workflows.
● Petabyte-Level Scalability Compatible with QNAP SAS and PCIe JBOD expansion units—build a flexible, high-capacity storage infrastructure for long-term growth.
● Long-term Supply Supported until 2030 to ensure stability for enterprise IT planning and infrastructure lifecycle management.
● DDR5 RAM Supports up to 192 GB DDR5 RAM, delivering stability and performance for memory-intensive applications and multi-VM workloads (ECC RAM is also supported).
● 3 x PCIe Gen 4 Expansion Slots Easily scale with 25GbE adapters, GPUs, or storage expansion cards—customize hardware to match evolving performance needs.
● High-Speed 10/2.5GbE Ports Equipped with dual 10GbE and dual 2.5GbE ports, ideal for fast multi-user file sharing, low-latency virtualization, and high-throughput media workflows.
● Petabyte-Level Scalability Compatible with QNAP SAS and PCIe JBOD expansion units—build a flexible, high-capacity storage infrastructure for long-term growth.
● Long-term Supply Supported until 2030 to ensure stability for enterprise IT planning and infrastructure lifecycle management.
Specifications
| Model | TS-h2477AXU-RP-R7-32G |
| Form Factor | 4U Rackmount |
| Processor (CPU) | AMD Ryzen™ 7 Pro 7000 Series, 8 Cores / 16 Threads, up to 5.3 GHz |
| CPU Architecture | 64-bit x86 |
| Graphics | Integrated AMD Radeon™ Graphics |
| Hardware Features | Floating Point Unit (FPU), AES-NI Encryption Engine, Hardware-Accelerated Transcoding, GPU Pass-through |
| System Memory | 32 GB DDR5 UDIMM |
| Maximum Memory | Up to 192 GB (4 × 48 GB) |
| Memory Slots | 4 × DDR5 UDIMM (Optional ECC Memory Supported) |
| Flash Memory | 5 GB (Dual Boot OS Protection) |
| Drive Bays | 24 × 3.5-inch SATA 6Gb/s / 3Gb/s (Hot-swappable) |
| Drive Compatibility | 3.5-inch SATA HDD, 2.5-inch SATA SSD |
| M.2 Slots | 2 × M.2 2280 PCIe Gen5 x2 (Supports NVMe PCIe Gen3 or later) |
| SSD Cache Acceleration | Supported |

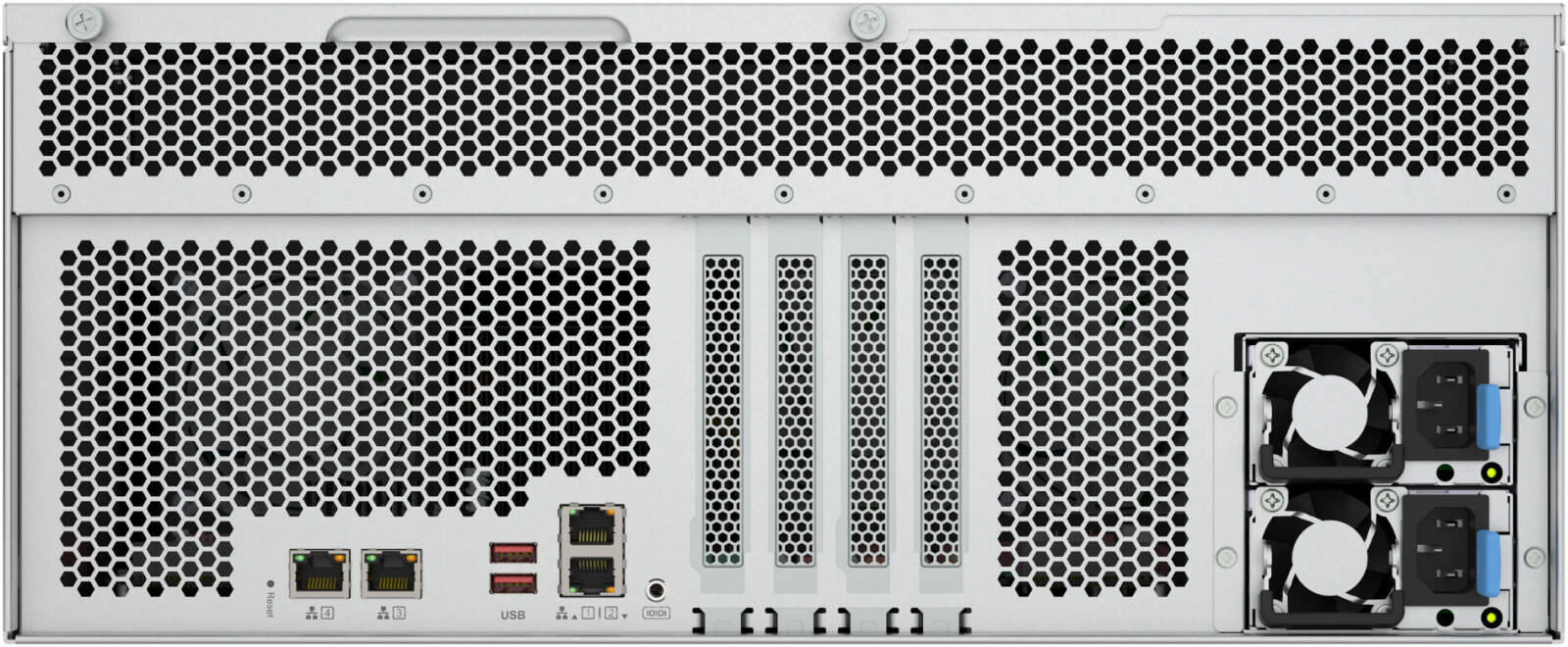

| Network Ports | 2 × 2.5GbE RJ45, 2 × 10GBASE-T RJ45 |
| Optional Networking | 25GbE via Optional PCIe Adapter |
| Network Features | Wake-on-LAN (WoL), Jumbo Frame Support |
| PCIe Expansion | 3 × PCIe Gen4 Slots (1 × x4, 1 × x8/x4, 1 × x4) |
| USB Ports | 2 × USB 3.2 Gen2 Type-A (10Gbps) |
| LED Indicators | Power, Status, LAN, HDD 1–24, M.2 SSD 1–2, Storage Expansion Status |
| Buttons | Power, Reset |
| Dimensions (H × W × D) | 177.35 × 432.4 × 511.7 mm |
| Weight | Net: 18.62 kg; Gross: 27.74 kg |
| Power Supply | Dual Redundant 800W, 100–240V AC |
| Cooling | 3 × 60 mm System Fans (12V DC) |
| System Warning | Buzzer |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 5–95% RH (Non-condensing, Wet Bulb: 27°C) |
| Maximum Concurrent CIFS Connections | Up to 5,000 (with Maximum Memory Installed) |
