Description
Description

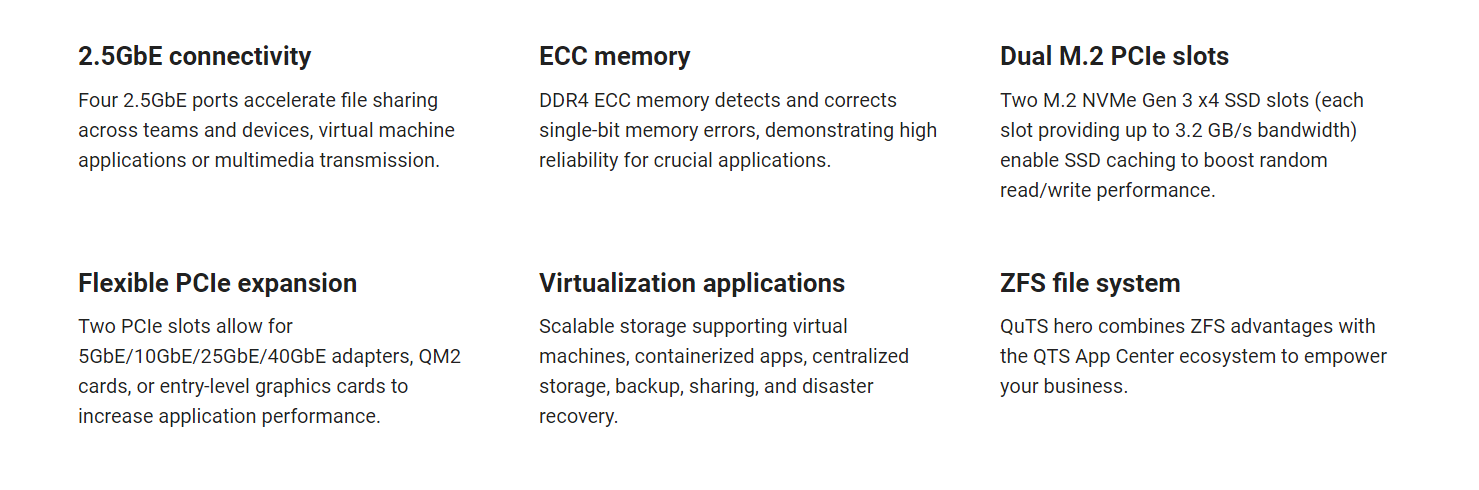

● ECC memory
● Dual M.2 PCIe slots
● Flexible PCIe expansion
● Virtualization applications
● ZFS file system
TS-h886
Intel® Xeon® D desktop QuTS hero NAS with four 2.5GbE ports, designed for real-time SnapSync data backup and virtual machine applications
Delivering enterprise performance at SMB prices, the TS-h886 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
Specifications
| Model | TS-h886-D1602-8G |
| CPU | Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | AES-NI |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB UDIMM DDR4 ECC (2 x 4 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA HDDs, 2.5-inch SATA HDDs, 2.5-inch SATA SSDs |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| SR-IOV | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 ports |
| 5 Gigabit Ethernet Port | Optional via an adapter |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes (only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 2 (Slot 1: PCIe Gen3 x8, Slot 2: PCIe Gen3 x8) |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~8, M.2 SSD 1~2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 225 × 292.9 × 319.8 mm |
| Weight (Net) | 10 kg |
| Weight (Gross) | 10.3 kg |
| Operating Temperature | 0 – 40°C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100~240V |
| Power Consumption: Operating Mode, Typical | 75.79 W (Tested with drives fully populated) |
| Fan | System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 10000 |
