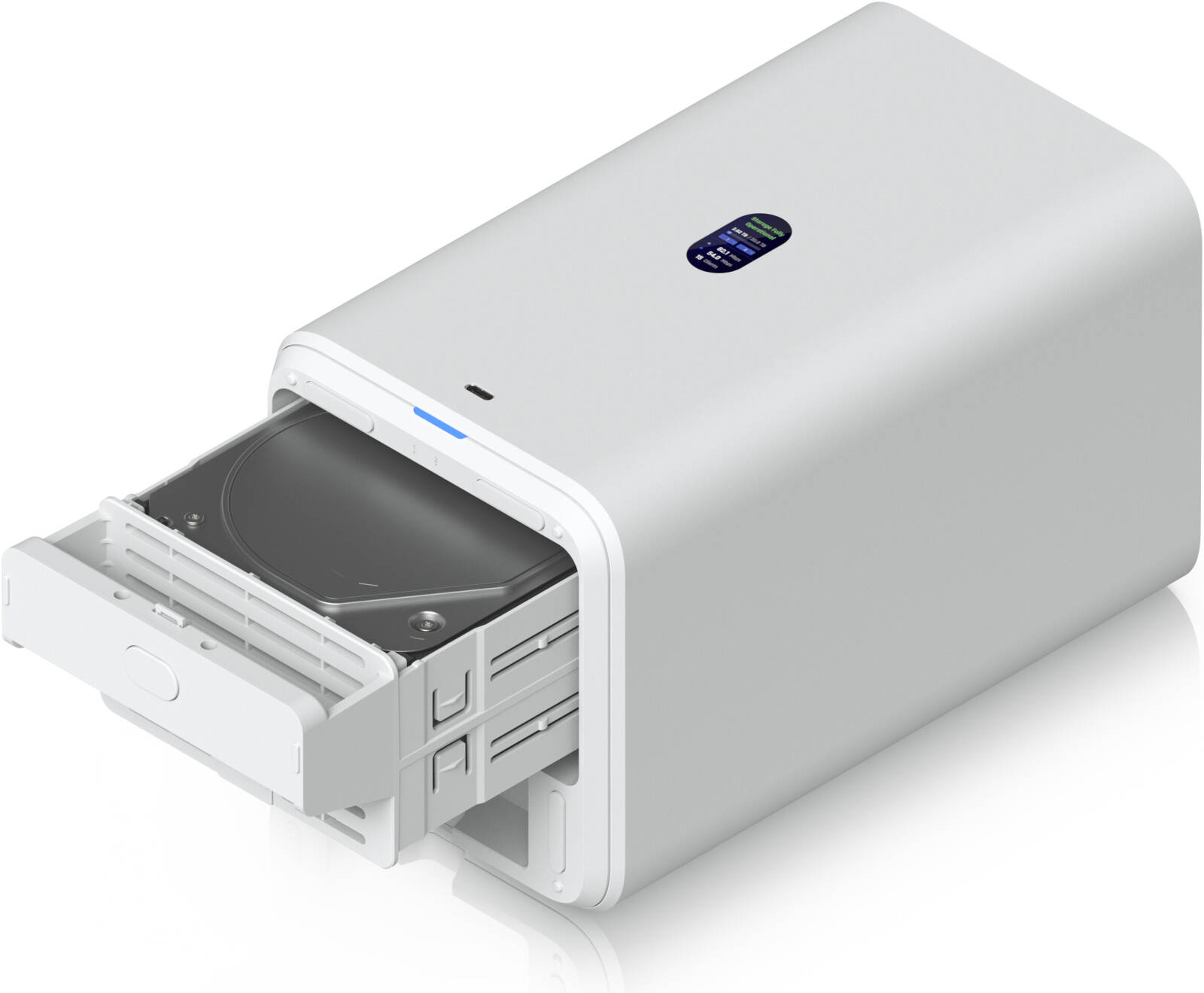

● Dual 3.5″ HDD Bays for Scalable Storage – Supports two standard 3.5‑inch hard drives, giving you flexible capacity for file storage, backups, and RAID 1 redundancy.
● High‑Speed 2.5 GbE Networking with PoE++ – Features a 2.5 GbE RJ45 port that delivers fast network throughput and supports Power over Ethernet++ (PoE++), simplifying installation with a single cable for both power and data.
● USB‑C Expansion Port – Includes a 5 Gbps USB‑C port for adding external storage or peripherals, expanding usability beyond the internal drive bays.
● Powerful Performance & Management – Powered by a Quad‑Core ARM Cortex‑A55 CPU with 4 GB RAM and managed through UniFi Drive software and mobile apps for easy file access and backups.
● Compact Desktop Form Factor with Display – Sleek, space‑efficient design with a 1.47″ color LCM display for status/alerts and Bluetooth for simplified setup.
● High‑Speed 2.5 GbE Networking with PoE++ – Features a 2.5 GbE RJ45 port that delivers fast network throughput and supports Power over Ethernet++ (PoE++), simplifying installation with a single cable for both power and data.
● USB‑C Expansion Port – Includes a 5 Gbps USB‑C port for adding external storage or peripherals, expanding usability beyond the internal drive bays.
● Powerful Performance & Management – Powered by a Quad‑Core ARM Cortex‑A55 CPU with 4 GB RAM and managed through UniFi Drive software and mobile apps for easy file access and backups.
● Compact Desktop Form Factor with Display – Sleek, space‑efficient design with a 1.47″ color LCM display for status/alerts and Bluetooth for simplified setup.
UNAS 2
UniFi Network Attached Storage with (2) 3.5″ HDD bays, 2.5 GbE networking, USB-C connectivity, and an included PoE++ adapter, all in a compact footprint.
Specifications
| Dimensions | 135 × 129 × 223.7 mm (5.3 × 5.1 × 8.8 in) |
| Storage Capacity | 2 × 3.5″ drive bays |
| Networking Interface | 1 × 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| Expansion Port | 1 × USB-C (5 Gbps) |
| Form Factor | Desktop |
| Hard Drive Support | 2 × 3.5″ HDD |
| USB Drive Support | Yes |
| Max Power Budget for Drives | 52 W |
| Max Power Consumption | 60 W |
| Power Method | PoE++ |
| Power Supply | 60 W PoE++ Adapter (Included) |
| Processor | Quad-Core ARM Cortex-A55, 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Display | 1.47″ Color LCM |
| Weight | 1.3 kg (2.85 lb) |
| Enclosure Material | Polycarbonate |
| LEDs | System |
| Operating Temperature | −5 to 40 °C (23 to 104 °F) |
| Operating Humidity | 10–90% non-condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, IC |
| Application Requirement | UniFi Drive v3.1.7 or later |
| Mobile App (iOS) | Version 10.28.0 or later |
| Mobile App (Android) | Version 10.28.3 or later |
| Supported File Protocols | NFS, SMB |
| RAID Type | RAID 1 |
| RAID Group | Single |
| Personal & Shared Drive | Yes |
| File Encryption | Yes |
| Backup to Remote UNAS | Yes |
| Backup to CIFS/SMB Server | Yes |
| Cloud Backup | Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi |
| Snapshots | Yes |
| Share Links | Yes |
| Time Machine Backup | Yes |
| Client App Support | Yes |
| User Groups | Yes |
