Description
Description
● Supported NAS System Expand the storage space of a QTS/QuTS hero NAS, supports up to 3.4PB raw capacity by daisy-chaining up to 16 expansion enclosures.
● DataBolt Bandwidth Optimization Combine two 6Gb/s connections into one 12 Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.
● Multipath Routing Ensure smooth data transmission and continuous operation by using the TL-R1220Sep-RP with a NAS that supports multipath routing.
● Storage Management Manage the storage space and settings of the TL-R1220Sep-RP with Storage & Snapshot Manager on the host NAS.
● Remote Files Transfer Conserve network bandwidth and performance by using the TL-R1220Sep-RP to transfer huge files from one device to another.
● Easy Installation & Storage With a short-depth design, the TL-R1220Sep-RP is suitable for universal deployment.
● DataBolt Bandwidth Optimization Combine two 6Gb/s connections into one 12 Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.
● Multipath Routing Ensure smooth data transmission and continuous operation by using the TL-R1220Sep-RP with a NAS that supports multipath routing.
● Storage Management Manage the storage space and settings of the TL-R1220Sep-RP with Storage & Snapshot Manager on the host NAS.
● Remote Files Transfer Conserve network bandwidth and performance by using the TL-R1220Sep-RP to transfer huge files from one device to another.
● Easy Installation & Storage With a short-depth design, the TL-R1220Sep-RP is suitable for universal deployment.
Specifications
| Model | TL-R1220Sep-RP |
| JBOD Connection Interface | SAS |
| Drive Bays | 12 × 3.5-inch |
| Drive Compatibility | 3.5″ SAS (12Gb/s, 6Gb/s), 3.5″ SATA (6Gb/s, 3Gb/s), 2.5″ SATA SSD (6Gb/s, 3Gb/s) |
| Disk Notes | Single disk type per RAID group (HDD or SSD only) |
| Hot-Swap | Supported |
| Form Factor | 2U Short Depth Rackmount |
| Host Interface | 4 × 12Gb/s SAS 3.0 (Mini-SAS HD SFF-8644) |

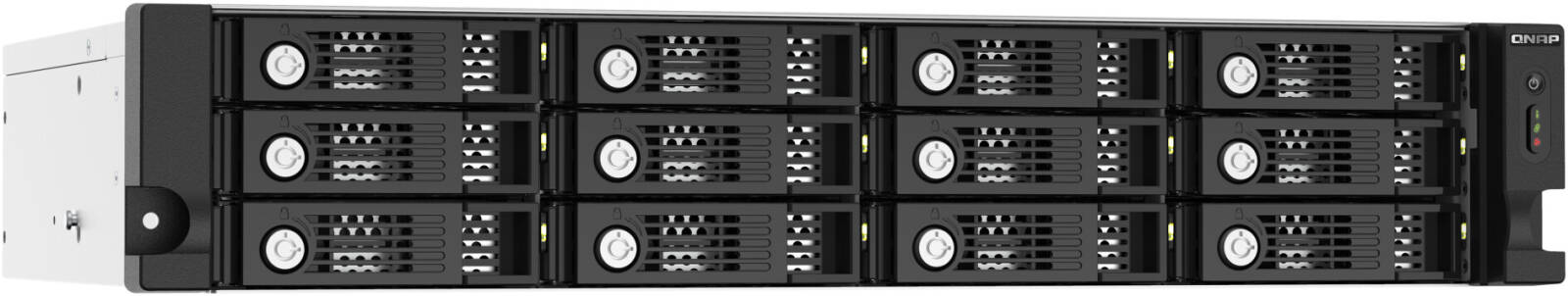

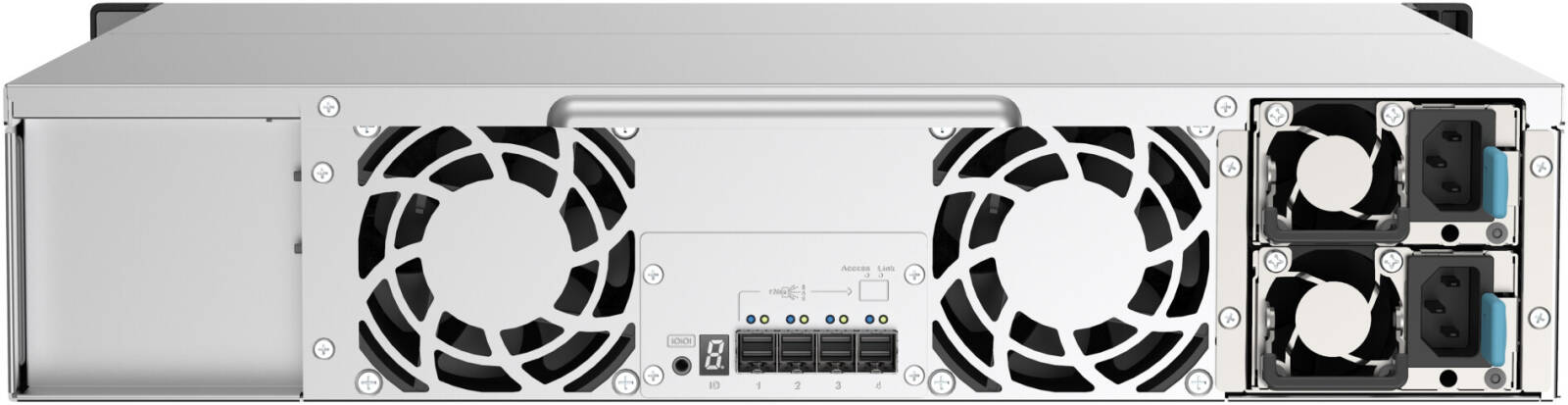

| LED Indicators | Front: HDD 1–12, Power, Status, Link, Fan errorRear: SAS connector, Enclosure ID |
| Buttons | Power |
| Dimensions (H × W × D) | 88.65 × 482 × 370.65 mm |
| Weight (Net / Gross) | 9.19 kg / 14.26 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5–95% RH (non-condensing) |
| Power Supply | 300W ×2, 100–240V |
| Power Consumption | 163.38W (typical, fully populated) |
| Cooling | 2 × 80mm fans |
| System Warning | Buzzer |
| OS Support | QTS / QuTS hero, Windows |
| Features | JBOD cascading, NAS storage expansion, Multi-path support |
