Description
Description
● Supports 8 x 2.5″/3.5″ SAS/SATA SSD/HDD hot-swappable drive trays.
● Backplane supports 8-port SAS/SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO.
● Supports up to E-ATX and SSI-EEB motherboard.
● Supports ATX (PS2) and 2U redundant PSU.
● Supports 360mm radiators.
● Supports 2 x 5.25″ and 1 x 3.5″ drive bays.
● Supports interface cards up to 370mm
● Multi-GPU support with 8 PCI expansion slots.

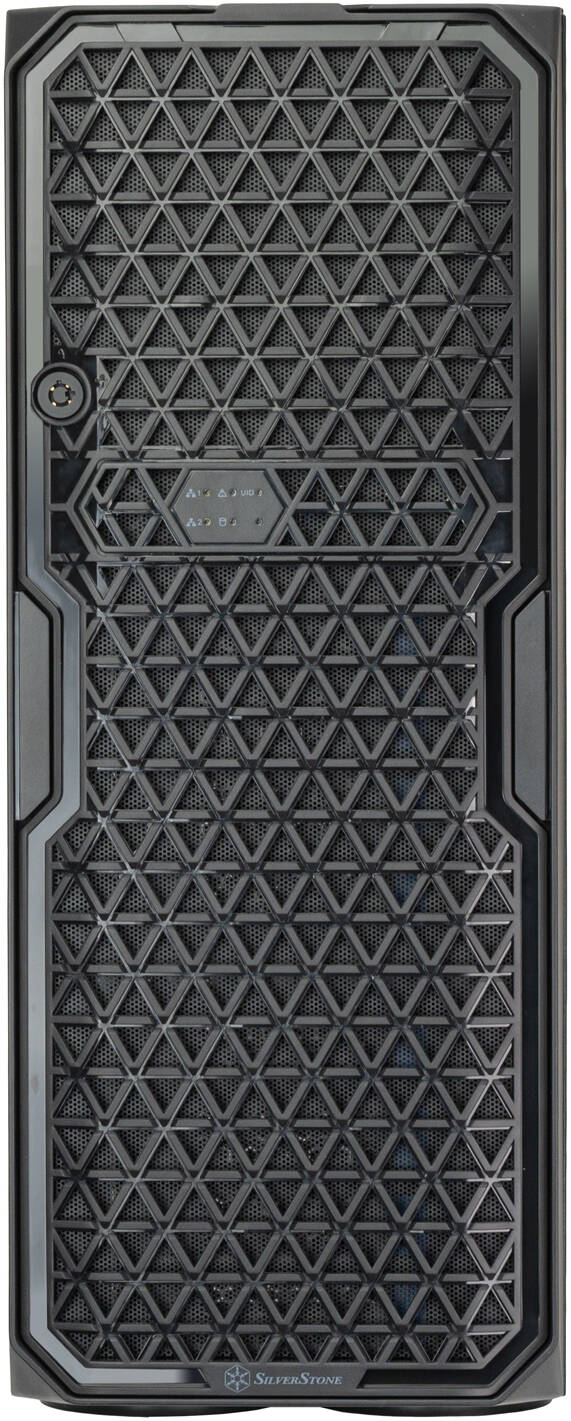

● Front door panel with lock design for additional security.
● Front I/O ports: 1 x USB Type-C, 2 x USB 3.0
● Backplane supports 8-port SAS/SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO.
● Supports up to E-ATX and SSI-EEB motherboard.
● Supports ATX (PS2) and 2U redundant PSU.
● Supports 360mm radiators.
● Supports 2 x 5.25″ and 1 x 3.5″ drive bays.
● Supports interface cards up to 370mm
● Multi-GPU support with 8 PCI expansion slots.
● Front door panel with lock design for additional security.
● Front I/O ports: 1 x USB Type-C, 2 x USB 3.0
WS380-E
High-Expandability Professional Workstation Chassis with 8 hot-swappable trays & 360mm Radiator Support
Specifications
| Material | Plastic front panel, galvanized steel body |
| Main Metal Thickness | 1.0 – 1.2 mm |
| Motherboard Support | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| HDD Backplane | 8 ports SAS / SATA to Mini-SAS HD SFF-8643 ×2 with SGPIO |
| Power Connector | 4-pin peripheral ×2 |
| Interface | SAS-1 / SAS-2 / SAS-3; SATA-1 / SATA-2 / SATA-3 |

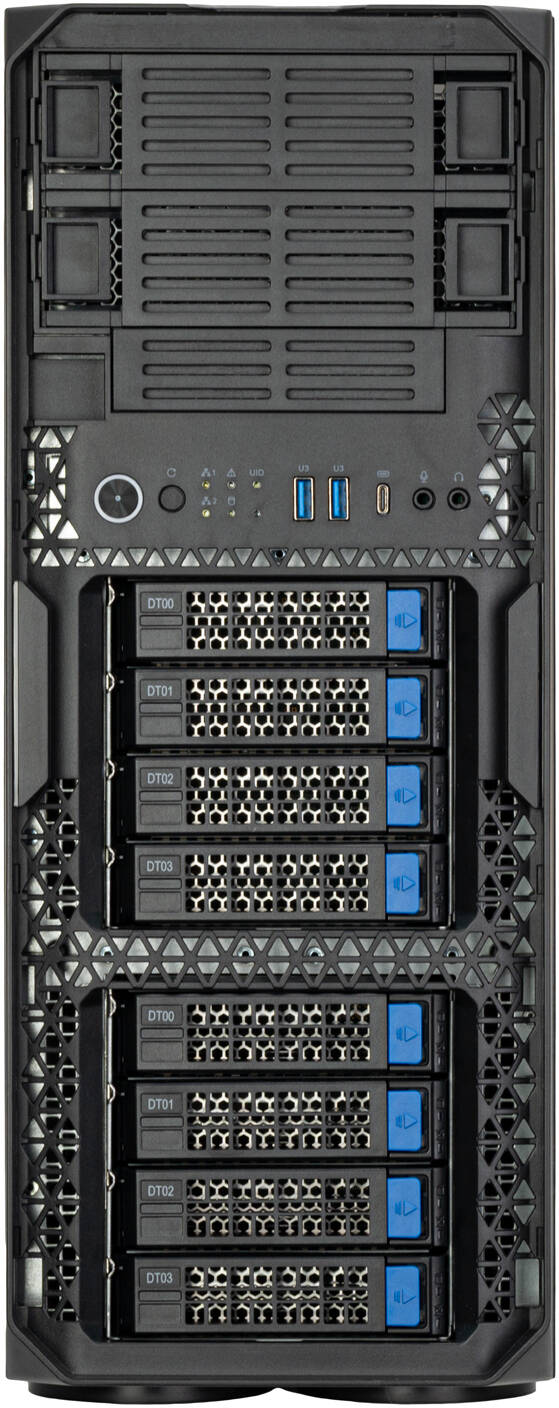

| Drive Bays | 2.5″/3.5″ SAS/SATA external hot-swap ×8; 5.25″ ×2; 3.5″ ×1 |
| Cooling System (Rear) | 80 mm ×2 (8038 ×2 black fans included) |
| Cooling System (Internal) | 120 mm ×3 (12025 ×3 black fans included) |
| Radiator Support | 120 mm / 240 mm / 360 mm |
| CPU Cooler Clearance | With GPU holder: 134 mm; Without GPU holder: 145 mm |

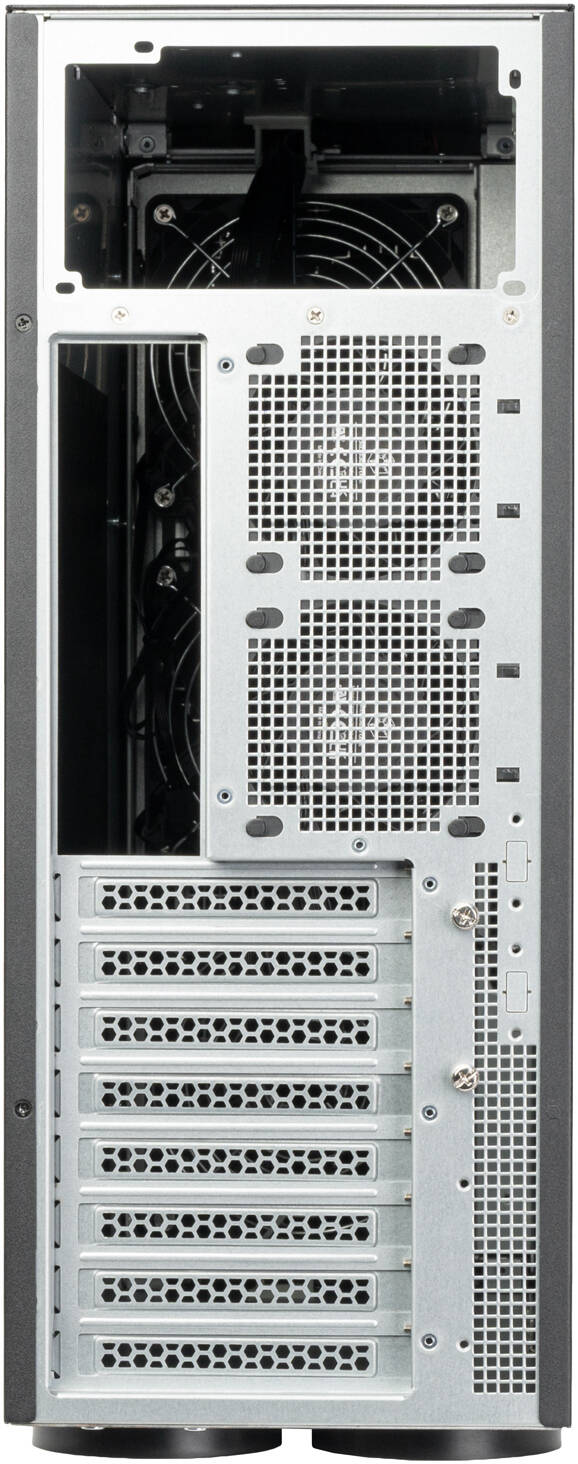

| Expansion Slots | 8 |
| Expansion Card Limit | Length: 370 mm; Width: 150 mm |
| Power Supply Support | PS2 (ATX) / 2U Redundant |
| Front Buttons | Power On/Off, System Reset |
| Front I/O Ports | USB Type-C ×1, USB 3.0 ×2, Speaker ×1, Mic ×1 |
| LED Indicators (Chassis) | Power LED ×1 (Green), HDD Access ×1 (White), LAN LED ×2 (Green), UID ×1 (White), System Error (Red) |
| LED Indicators (HDD Tray) | HDD Power LED (Green), HDD Access (Blue blinking) |
| Dimensions | 453 × 175 × 683 mm (17.83 × 6.89 × 26.89 in) |
| Net Weight | 16.62 kg |
